Product Description:

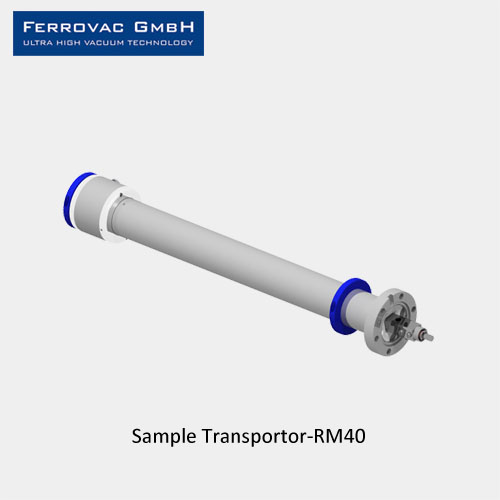

The ultra-high vacuum magnetic coupling sample transfer rod (RM40) can move linearly and rotate. Its main function is to transfer samples/mask/sample drag, etc. in a vacuum environment. The rare earth magnet outside the magnetic rod and the magnet inside the magnetic rod are coupled together for transmission. The internal high-precision bearing ensures that the sample transfer rod can transfer samples smoothly even after repeated heating and baking.
The ultrahigh vacuum magnetic coupling sample transfer rod (RM40) can move linearly and rotate. Its main function is to transfer samples/mask/sample drag, etc. in a vacuum environment. The rare earth magnet outside the magnetic rod and the magnet inside the magnetic rod are coupled together for transmission. The internal high-precision bearing ensures that the sample transfer rod can transfer samples smoothly even after repeated heating and baking.
Features:
Installation flange: DN40CF, can be customized;
Linear transmission stroke: customizable;
Length inside cavity after retraction: Min. 10 mm, Max. 1250 mm;
Linear force: 70 N;
Torque: 5 Nm;
Tolerable baking temperature: Max. 150℃;
Working pressure range: 1000 mbar ~ 10-11 mbar；
Compatible with various ultra-high vacuum chambers;
Optional forks, claws, clamps, lifting mechanisms, etc. with various functions;
