Ultra-high vacuum single-axis manipulator

•


• Product Description:

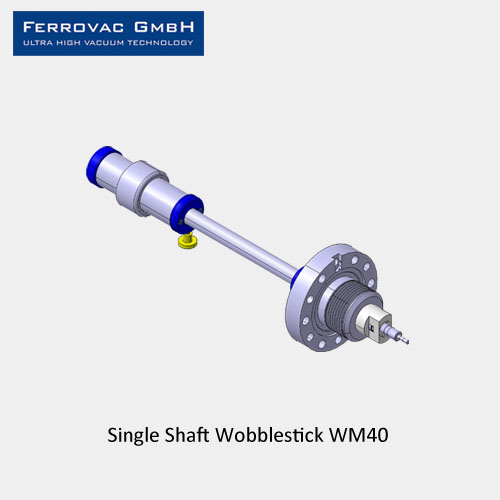

• The WM40 magnetically driven single-axis manipulator is a universal tool for operating various sample holders. It can be used to operate mechanisms and components in ultra-high vacuum. The end of the manipulator can be equipped with forks or claw operating tools with different functions.

Magnetic driven ultra-high vacuum single-axis manipulator (WM40 series)Is a universal tool for operating a variety of different sample holders
Can be used to operate mechanisms and components within ultra-high vacuum

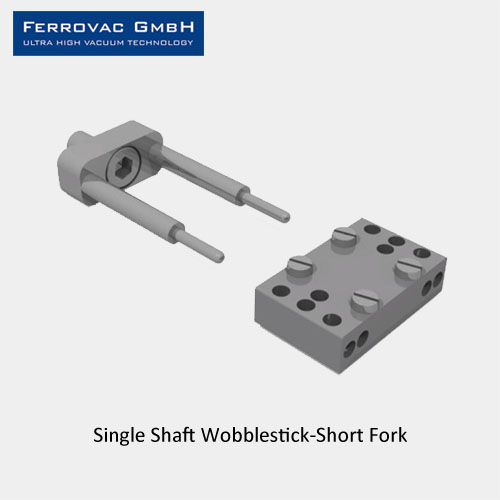

The end of the manipulator can be equipped with forks or claw operating tools with different functions.

Features:

Installation flange port: DN40CF, can be customized;

Manipulator swing deflection angle range: ±20°, the design version with large deflection angle can reach± 28°；

Linear force: 30N；

Torque:0.5 Nm；

Tolerable baking temperature: Max.150 ℃；

Recommended working pressure range:1000 mbar ~ 1 x 10-11 mbar；

Linear transmission stroke: 100/150/200/250/300 mm, the rest of the transmission stroke needs to be customized;

Retraction length: the distance from the flange plane to the end of the clamp handle, can be customized;

Adaptable to various ultra-high vacuum systems;

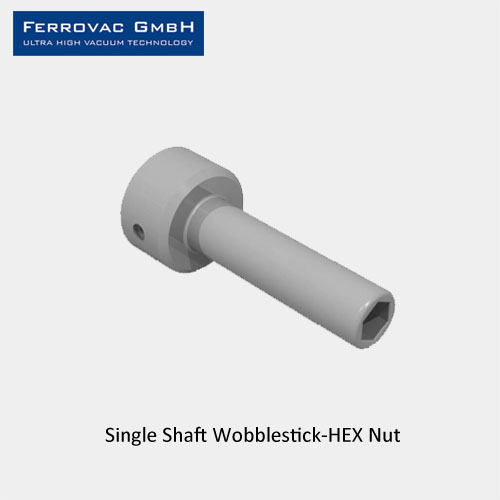

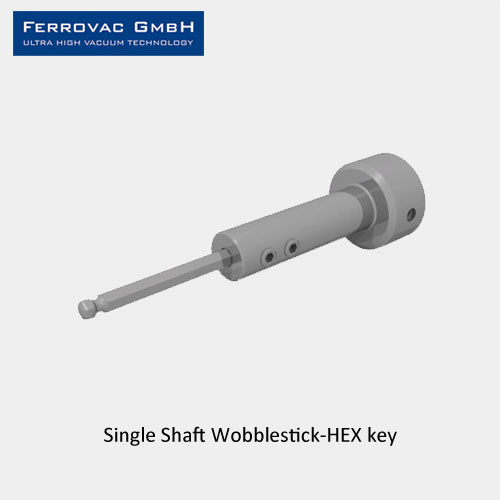

Optional end tools with various functions;

Optional robot support bracket;
