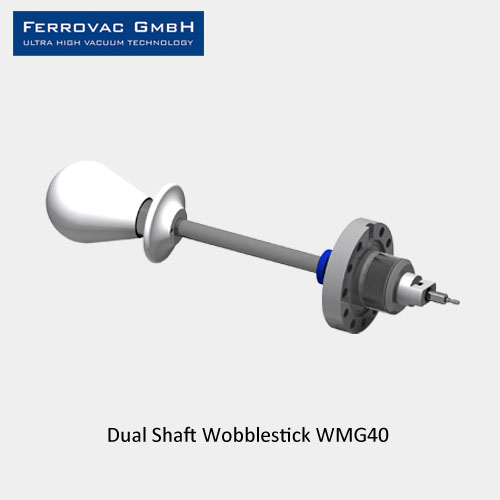

Ultra high vacuum dual-axis swing mechanical arm

Model: WMG40

Product description: The end of the magnetically driven ultra-high vacuum two-axis swing manipulator (WMG40) can be equipped with a jaw pliers for operating a series of different sample holders, such as flagshaped sample holders (SHOM). The jaw pliers can open and close the jaws by pressing the magnet handle button placed on the outer end, and can also provide various suitable opening and closing jaws for different shapes of sample holders.

The magnetically driven ultra-high vacuum biaxial swing manipulator (WMG40) can be equipped with a clamping jaw at the end and is used to operate a range of different sample holders, such as the flag-shaped sample holder (SHOM). The jaw pliers can open and close the jaws by pressing the magnet handle button placed on the outer end, and can also provide various suitable opening and closing jaws for different shapes of sample holders.

Features:

Manipulator swing deflection angle range: ±20°, the design version with large deflection angle can reach± 28°；

Linear force: 30N；

Recommended working pressure range:1000 mbar ~ 1 x 10-11 mbar；

Retraction length: the distance from the flange plane to the end of the clamp handle, can be customized;

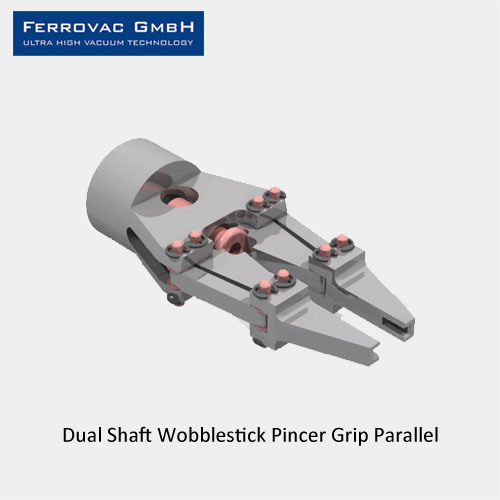

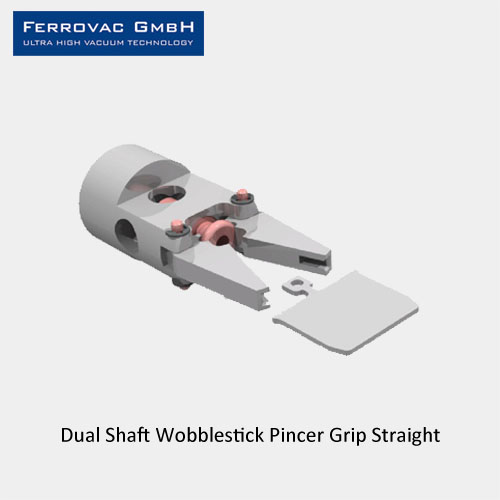

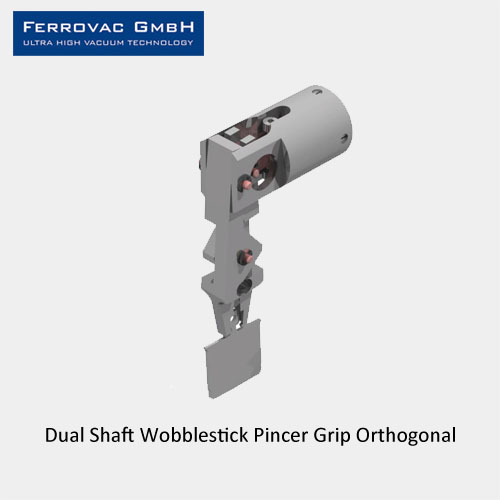

Optional end clamps with various functions;
